• SKU: KMK4Z

Duratuf Kiwi MK4 Garden Shed

FROM

$2,489.00

(incl GST)

Robust, Spacious, and Built to Last

The Duratuf Kiwi MK4 Garden Shed is a large, gable-roofed steel garden shed designed for serious storage and light workshop use. A full timber frame and thick steel cladding provide strong, secure housing for tools, outdoor furniture, bikes, BBQs, and more, while generous wall and gable heights improve usability and comfort. Internal framing makes it easy to add shelves, hooks, tool boards, or linings, creating a flexible, long-term storage solution.

Key Specifications

  • Base size: Width 4210mm, Depth 1715mm
  • Roof size: Width 4245mm, Depth 1975mm
  • Gable height: 2110mm
  • Wall height: 1900mm (extra height option available)
  • Door opening (default): 1650mm
Specification
Sheet
Dimensions
Diagram
Gubba Garden Sheds

MK4 Garden Shed

Specification sheet
STEEL GARDEN SHED
SKU KMK4Z
01

Room for your next project.

A wide footprint. Timber framing. Everyday storage.

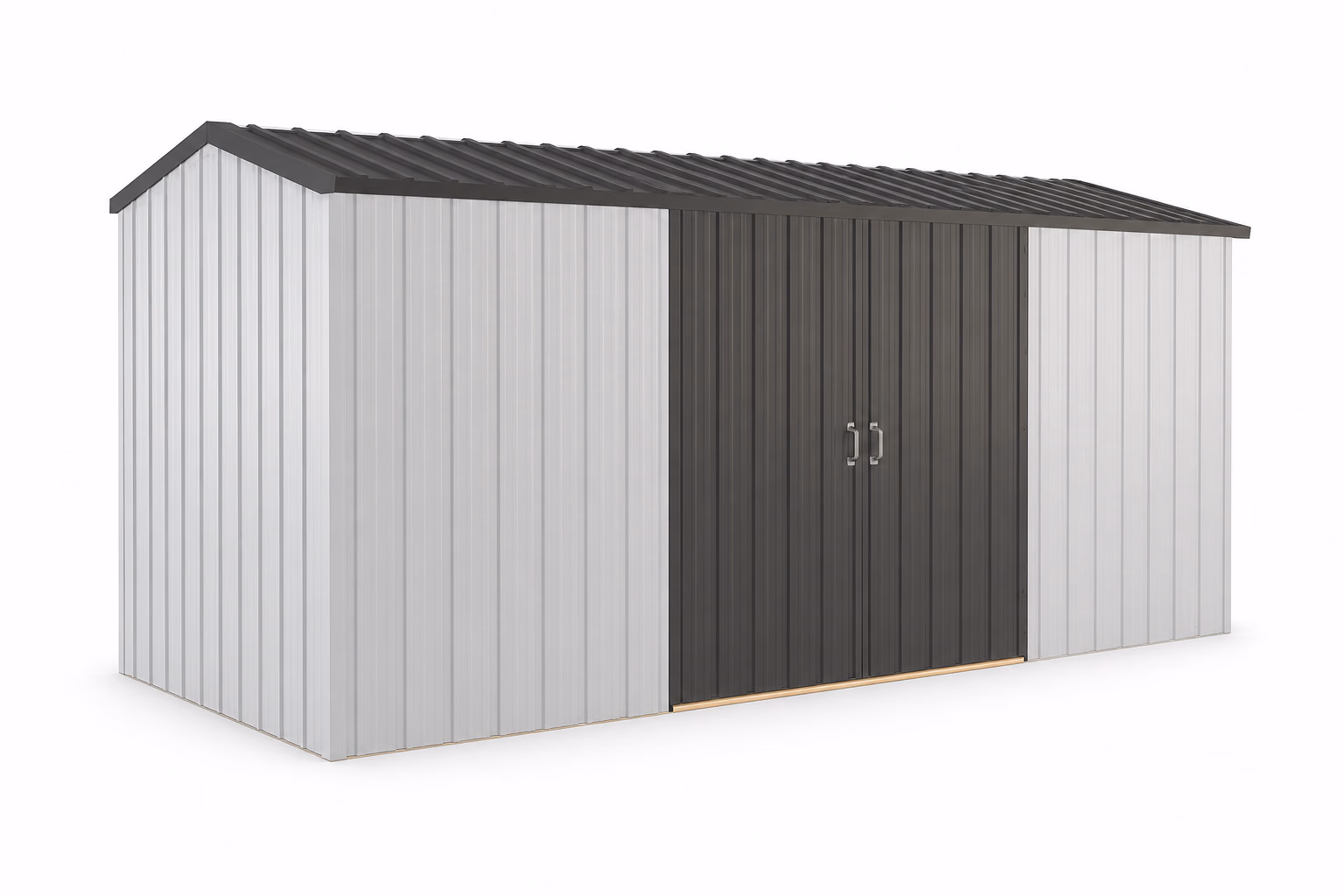

Duratuf Kiwi MK4 with gable roof and double sliding doors
Standard configuration · illustrative view
DURATUF · KIWI SERIES

MK4
Garden Shed

Timber-framed steel storage for tools, bikes, outdoor furniture and garden essentials.

7.22 m²

Base footprint area
Gable roof
Double sliding door
Width
4210 mm
Depth
1715 mm
Wall height
1900 mm
Peak height
2110 mm
02

A closer look at the dimensions

All measurements in millimetres. Standard configuration shown.

Depth 1715 mm Peak 2110 mm Wall 1900 mm
Gable-end elevation · schematic
Base width
4210 mm
Base depth
1715 mm
Roof width
4245 mm
Roof depth
1975 mm
Wall height
1900 mm
Gable / peak height
2110 mm
Base footprint area
7.22 m²

Roof dimensions are larger than the base footprint. Check the installation instructions when planning clearances.

View original dimension diagram ↗

03

Steel cladding. A full timber frame.

Hi-tensile anti-rust steel over H3-treated NZ pine timber.

Timber frame illustration · schematic, not to scale
Cladding thickness
0.4 mm
Material
Hi-tensile anti-rust steel
Frame
H3-treated NZ pine timber
04

Find your colour

A finish to feel at home in your garden.



  • Nightfall


  • Lichen


  • Permanent Green


  • Thunder Grey


  • Ironsand


  • Karaka


  • Gull Grey


  • Sandstone Grey


  • Ebony


  • Titania


  • Grey Friars


  • Zinc-Alu

On-screen colours are approximate. Refer to physical samples and the product’s available options before choosing. These swatches do not change your order.

05

Easy access, every day

The standard MK4 door configuration.

1650 mm opening Double sliding door
Double sliding door detail · schematic, not to scale
Door type
Double sliding
Clear opening width
1650 mm

Other configurations are available in the product options. This sheet describes the standard double sliding door.

06

Plan a solid foundation

Concrete slab dimensions for the raised floor modification.

4195 × 1700 mm Concrete slab Raised floor modification
Concrete slab plan · schematic, not to scale
Shed base footprint
4210 × 1715 mm
Concrete slab
4195 × 1700 mm
Detail
Raised floor modification

Before pouring concrete, confirm the raised floor modification against the current manufacturer’s installation instructions. This diagram is a dimensional guide.

07

Flat-packed, ready to transport

Check the pack dimensions against your vehicle or trailer.

Master pack
2300 × 1050 × 300 mm
Timber pack
4300 × 300 × 350 mm
Floor pack
1730 × 360 × 330 mm

Floor pack applies when a floor is ordered. Dimensions are length × width × height.

08

Get set for assembly

Have the tools for your chosen configuration ready.

  • Battery drill
  • 3.5 mm drill bit
  • 6 mm drill bit (for clear roof)
  • 5/16 inch hex drive
  • Riveter
  • Hammer
  • Nail punch
  • Tape measure
  • Ladder
  • Spanners × 2
  • String line
  • Tin snips
  • Skilsaw (for floor kit)
  • Jigsaw (for floor kit)
  • Masonry drill (for bolt-down kit)
  • 10 mm masonry bit (for bolt-down kit)
09

Built for your garden

Duratuf Kiwi combines steel cladding with treated timber framing.

30 year

Manufacturer warranty

H3 treated

NZ pine timber frame

30-year warranty as stated on the Duratuf product page. Manufacturer terms, conditions and exclusions apply.

Duratuf Kiwi Sheds

© Gubba Products Ltd · MK4
Standard configuration. Colours and options may vary.

MK4 · 4210 × 1715 mm

Gubba Garden Sheds

Colours
  • Ebony
  • Grey Friars
  • Gull Grey
  • Ironsand
  • Karaka
  • Lichen
  • Nightfall
  • Permanent Green
  • Sandstone Grey
  • Thunder Grey
  • Titania
  • Zincalume

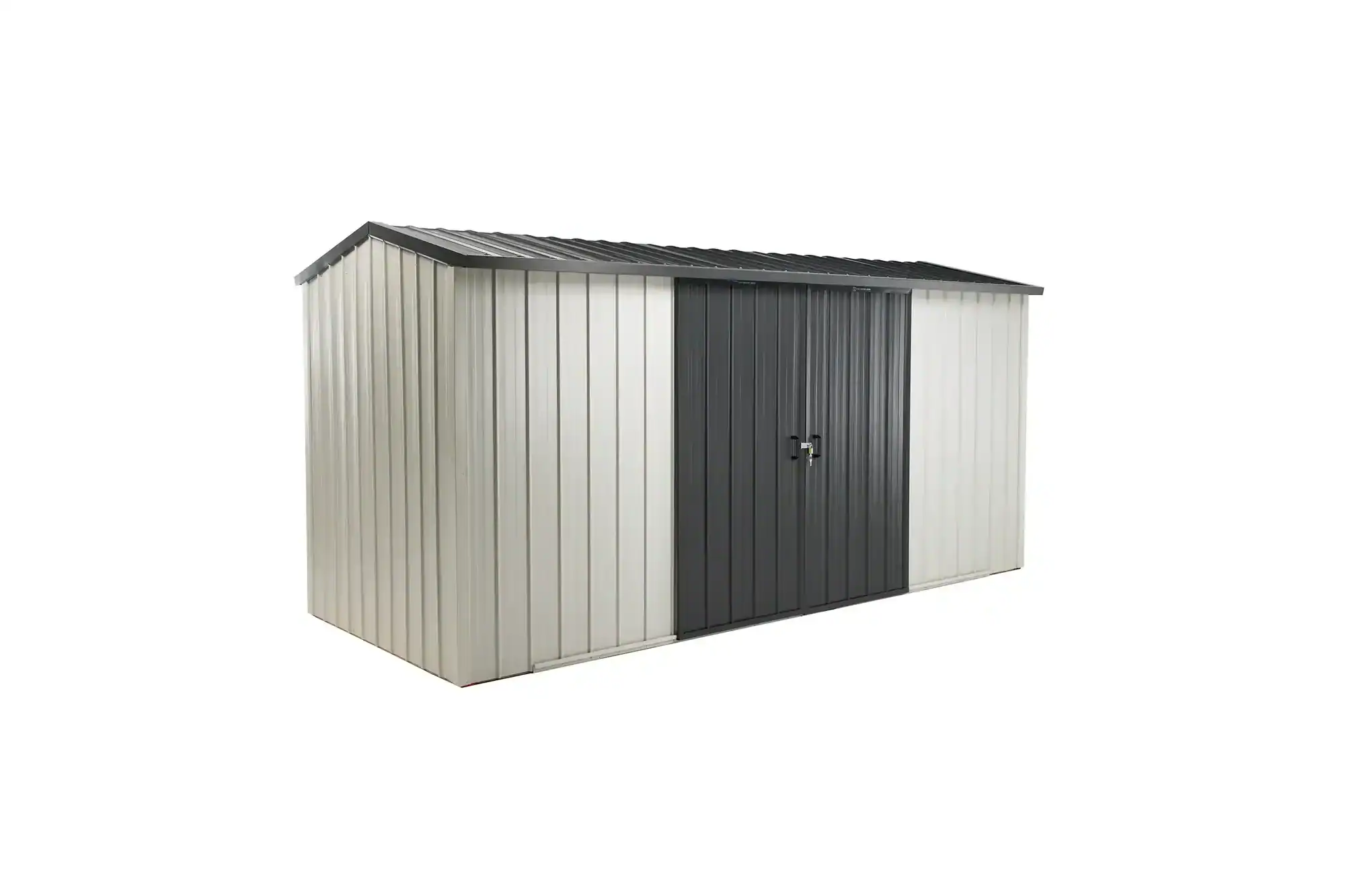

Product Preview

⏱️ Current manufacturing timeframe: Expect dispatch in around 10 working days. Allow an additional 10 working days if extra height or special colours are added.

Shed Base
* Reference only, colours and variations may vary.

Brand features

Full timber-framed sheds deliver outstanding strength and durability, ensuring superior protection from New Zealand's harsh weather.
0.4mm hi-tensile anti-rust steel cladding is thicker than some competitors, offering superior strength and long-lasting durability.
Special gutters efficiently direct rainwater off the roof and away from the door area preventing leaks and water damage.
Advanced water run-off keeps your shed weatherproof and your gear dry. A unique construction prevents water, leaves, and debris from collecting.
Choose from a broad selection of popular colours to create the perfect colour scheme and style for your outdoor space.
Choose a Duratuf shed for quality and peace of mind. Crafted with premium materials and expert workmanship, each comes with a 30-year warranty.
